Forensic Access to iPhone/iPad/iPod Devices running Apple iOS
Perform the complete forensic acquisition of user data stored in iPhone/iPad/iPod devices. Elcomsoft iOS Forensic Toolkit allows imaging devices’ file systems, extracting device secrets (passcodes, passwords, and encryption keys) and accessing locked devices via lockdown records.
The following extraction methods are supported:
- Advanced logical acquisition (backup, media files, crash logs, shared files) (all devices, all versions of iOS)
- Direct agent-based extraction (all 64-bit devices, select iOS versions)
- Forensically sound bootloader-based checkm8 extraction (select devices)
- Jailbreak-based extraction (all devices and versions of iOS with public jailbreaks)
- Passcode unlock and true physical acquisition (select 32-bit devices)
See Compatible Devices and Platforms for details.
Full File System Extraction and Keychain Decryption

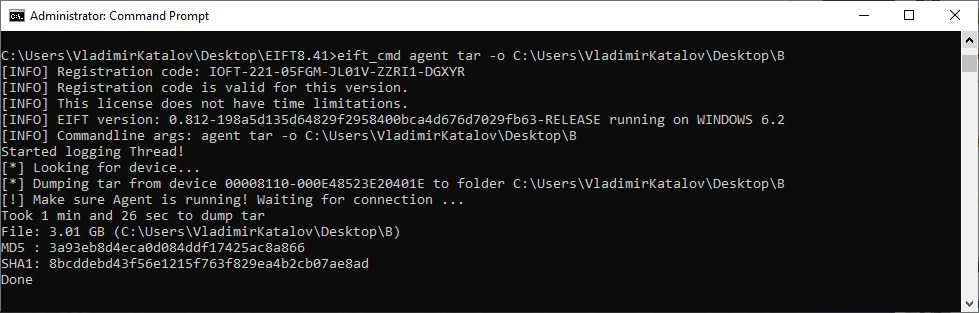

A jailbreak-free extraction method based on direct access to the file system is available for a limited range of iOS devices. Using an in-house developed extraction tool, this acquisition method installs an extraction agent onto the device being acquired. The agent communicates with the expert’s computer, delivering robust performance and extremely high extraction speed topping 2.5 GB of data per minute.
Better yet, agent-based extraction is completely safe as it neither modifies the system partition nor remounts the file system while performing automatic on-the-fly hashing of information being extracted. Agent-based extraction does not make any changes to user data, offering forensically sound extraction.

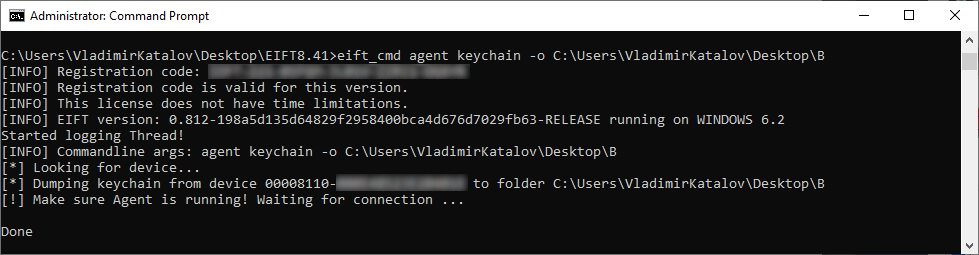

Both the file system image and all keychain records are extracted and decrypted. The agent-based extraction method delivers solid performance and results in forensically sound extraction. Removing the agent from the device after the extraction takes one push of a button.
You can either extract the complete file system or use the express extraction option, only acquiring files from the user partition. By skipping files stored in the device's system partition, the express extraction option helps reduce the time required to do the job and cut storage space by several gigabytes of static content.
Partial file system extraction is available for the latest generations of Apple devices (up to and including the iPhone 14 range) running iOS versions up to and including iOS 16.1.2. Partial file system extraction returns data from third-party app sandboxes as well as media files and some system databases.

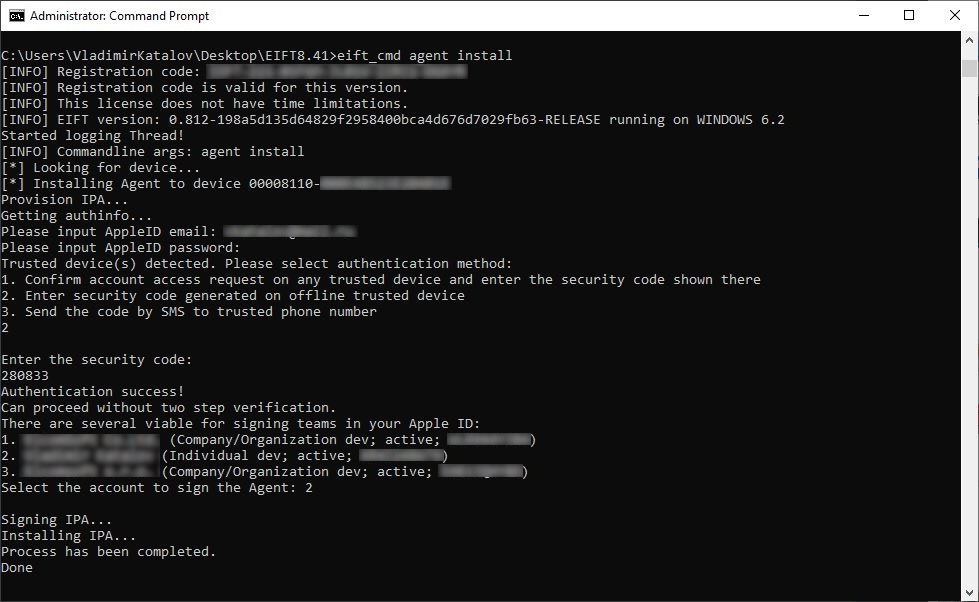

Installing and signing the extraction agent requires an Apple ID registered in the Apple Developer Program. The Mac edition drops this requirement, allowing to use a regular Apple ID for signing and sideloading the extraction agent onto the iOS device.
Jailbreak-based Extraction
In addition to agent-based extraction, iOS Forensic Toolkit fully supports the extraction of all jailbroken devices for which a jailbreak is available. Full file system extraction and keychain decryption are available for jailbroken devices. All public jailbreaks are supported.

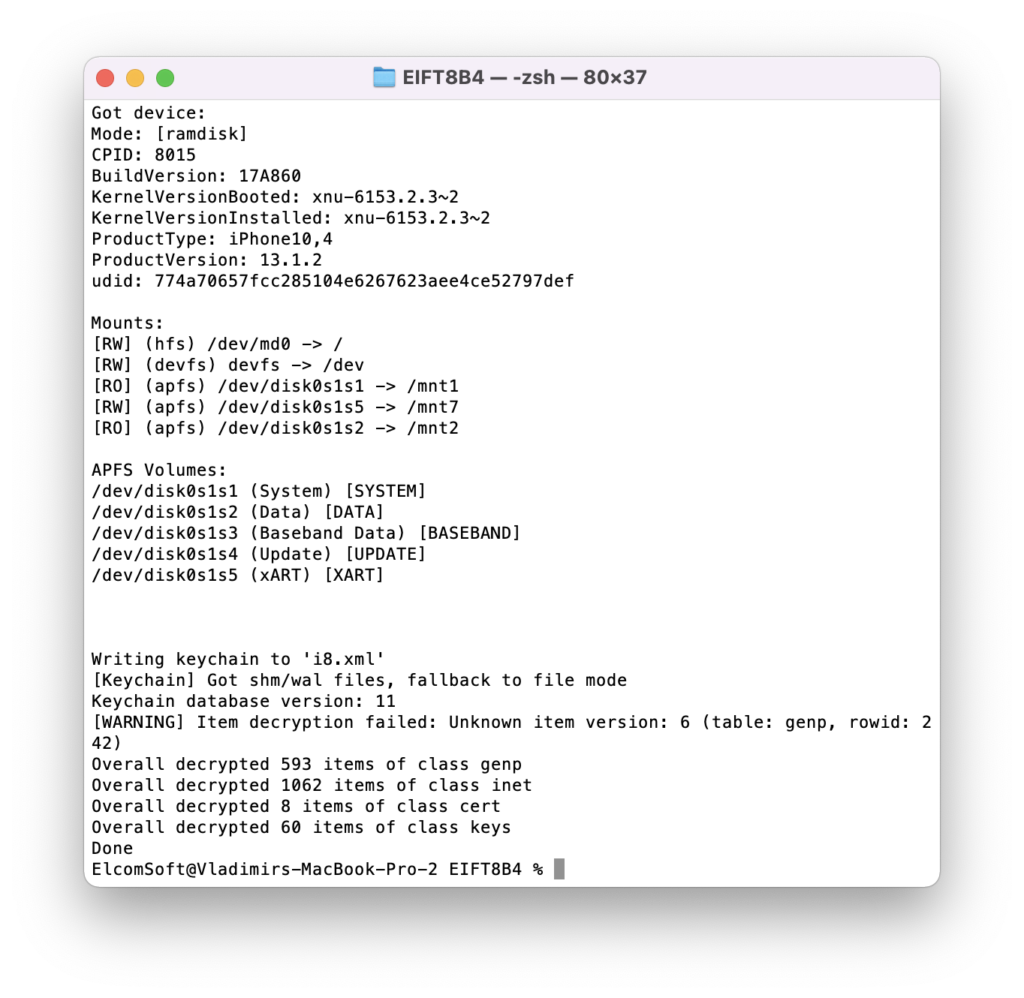

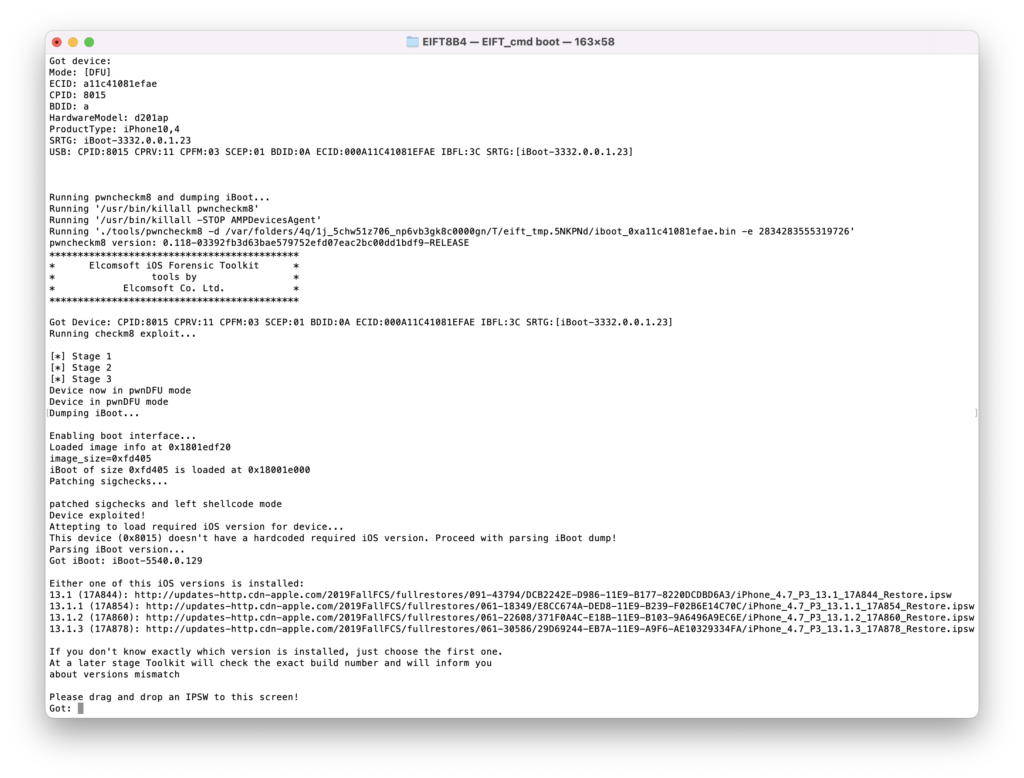

Forensically sound extraction with bootloader exploit
To preserve digital evidence, the chain of custody begins from the first point of data collection to ensure that digital evidence collected during the investigation remains court admissible. The new, bootloader-based extraction method delivers repeatable results across extraction sessions. When using iOS Forensic Toolkit on a supported device, the checksum of the first extracted image will match checksums of subsequent extractions provided that the device is powered off between extractions and never boots the installed version of iOS in the meantime.

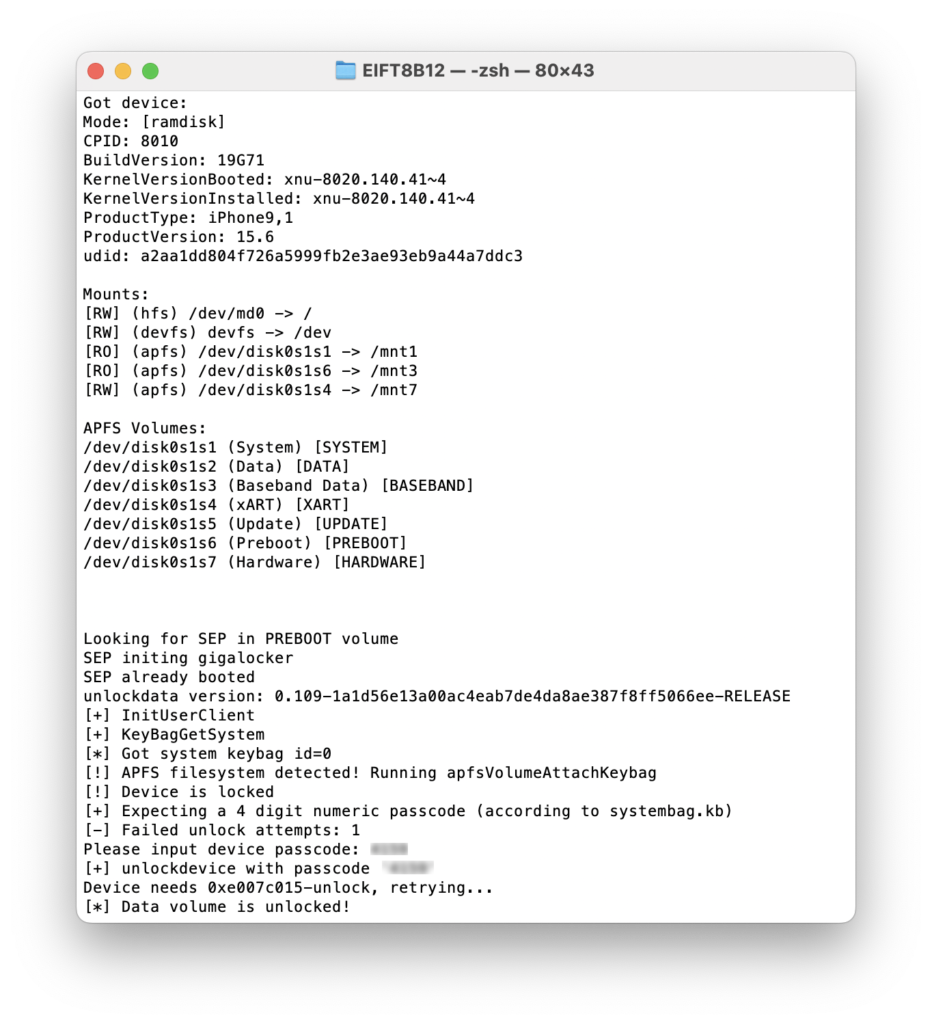

The new extraction method is the cleanest yet. Our implementation of bootloader-based exploit is built from the ground up. All the work is performed completely in the RAM, and the operating system installed on the device is not booted during the extraction process. Our unique direct extraction process offers the following benefits:
- Repeatable results. Checksums of subsequent extractions will match the first one if the device is kept powered off and never boots iOS between sessions.
- Supports iPhone 5s, 6/6s/Plus, SE (original), iPhone 7/8/Plus, iPhone X.
- Supports a wide range of Apple models in total including 25 iPhones, 40 iPads, 3 iPods, 4 Apple TV and 4 Apple Watch models
- Wide iOS compatibility. iOS 4 through iOS 16 are supported with limited support for iOS 16 on A11 devices.
- Unaltered system and data partitions.
- Zero data modification policy: 100% of the patching occurs in the RAM.
- The installation process is fully guided and massively more reliable compared to jailbreaking.
- Locked devices supported in BFU mode, while USB restricted mode can be completely bypassed.
Notes: bootloader-level extractions are available exclusively in the Mac edition, requiring a macOS computer.
Unlocking and Imaging Legacy Devices: iPhone 4, 4s, 5, and 5c
Passcode unlock and imaging support are available for legacy iPhone models.
The Toolkit can be used to unlock encrypted iPhone 4, 4s (1), 5 and 5c devices protected with an unknown screen lock passcode by attempting to recover the original 4-digit or 6-digit PIN. This DFU attack works at the speed of 13.6 passcodes per second on iPhone 5 and 5c devices, and takes only 12 minutes to unlock an iPhone protected with a 4-digit PINs. 6-digit PINs will take up to 21 hours. A smart attack will be used automatically to attempt cutting this time as much as possible. In less than 4 minutes, the tool will try several thousand most commonly used passcodes such as 000000, 123456 or 121212, followed by 6-digit PINs based on the dates of birth. With 74,000 of those, the smart attack takes approximately 1.5 hours. If still unsuccessful, the full brute force of the rest of the passcodes is initiated. (Note: passcode recovery runs at the speed of 6.6 passcodes per second on the iPhone 4).
Full physical acquisition is available for legacy iOS devices including the iPhone 4, 4s (1), 5 and 5c. For all supported models, the Toolkit can extract the bit-precise image of the user partition and decrypt the keychain. If the device is running iOS 4 through 7, the imaging can be performed even without breaking the screen lock passcode, while devices running iOS 8 through 10 require breaking the passcode first. For all supported models, the Toolkit can extract and decrypt the user partition and the keychain.
(1) The passcode unlock and forensically sound, checkm8-based extraction are available for the iPhone 4s, iPod Touch 5, iPad 2 and 3 devices via a custom flashed Raspberry Pi Pico board, which is used to apply the exploit. The firmware image is provided with iOS Forensic Toolkit; the Pico board is not supplied.
Notes: Mac edition only; iPhone 4s support requires a Raspberry Pi Pico board (not supplied) with custom firmware (supplied). For iOS 4 through 7, passcode recovery is not required for device imaging. For iOS 8 and 9, the passcode must be recovered before imaging (otherwise, limited BFU extraction available).
Extended Logical Acquisition
iOS Forensic Toolkit supports logical acquisition, a simple and safe acquisition method. Logical acquisition produces a standard iTunes-style backup of information stored in the device, pulls media and shared files and extracts system crash logs. While logical acquisition returns less information than low-level extraction, experts are recommended to create a logical backup of the device before attempting more invasive acquisition techniques.
We always recommend using logical acquisition in combination with low-level extraction for safely extracting all possible types of evidence.
Quickly extract media files such as Camera Roll, books, voice recordings, and iTunes media library. As opposed to creating a local backup, which could be a potentially lengthy operation, media extraction works quickly on all supported devices. Extraction from locked devices is possible by using a pairing record (lockdown file).
In addition to media files, iOS Forensic Toolkit can extract crash/diagnostics logs and stored files of multiple apps, extracting crucial evidence without a jailbreak. Extract Adobe Reader and Microsoft Office locally stored documents, MiniKeePass password database, and a lot more. The extraction requires an unlocked device or a non-expired lockdown record.
Logical acquisition is available for all devices regardless or hardware generation and jailbreak status. The device must be unlocked at least once after cold boot; otherwise, the device backup service cannot be started.
Experts will need to unlock the device with passcode or Touch ID, or use a non-expired lockdown file extracted from the user’s computer.
If the device is configured to produce password-protected backups, experts must use Elcomsoft Phone Breaker to recover the password and remove encryption. Elcomsoft Phone Breaker is also required to view keychain records. If no backup password is set, the tool will automatically configure the system with a temporary password (“123”) in order to be able to decrypt keychain items (password will be reset after the acquisition).
Using a lockdown (pairing) record, information can be extracted from locked iOS devices even after power-off or reboot. The following matrix applies to devices running iOS 8 and newer:
Basic device info | Advanced device info | App list | Media | iTunes-style backup | |
---|---|---|---|---|---|
Device locked, no lockdown record | Yes | No | No | No | No |
Device never unlocked after reboot, lockdown exists | Yes | Yes | No | No | No |
Device unlocked after reboot, lockdown exists | Yes | Yes | Yes | Yes | Yes |
Supported Devices and Acquisition Methods
iOS Forensic Toolkit implements low-level extraction support for devices ranging from the iPhone 5s through iPhone 14, 14 Pro and iPhone 14 Pro Max range.
The following compatibility matrix applies:
- Passcode unlock: Brute-forces 4-digit and 6-digit screen lock passcodes via DFU exploit. All iOS versions, iPhone 4, 4s, 5 and 5c devices. [1][2]
- Legacy devices: Bit-precise imaging and decryption of iPhone 4, 4s, 5 and 5c devices. [1][2]
- Agent: Full file system extraction and keychain decryption for devices running iOS 9 through 15.7.2, partial file system extraction up to and including iOS 16.1.2. The corresponding iPad models are also covered. Apple Developer registration required (Windows)/optional (macOS).
- Via Bootrom exploit (checkm8): Forensically sound file system & keychain acquisition for 76 Apple devices [1]
- No jailbreak: Logical acquisition, shared files and media extraction for devices running versions of iOS without a jailbreak. Device must be unlocked with passcode, Touch ID or lockdown record
Perform physical and logical acquisition of iPhone, iPad and iPod Touch devices. Image device file system, extract device secrets (passwords, encryption keys and protected data) and decrypt the file system image.
-
Only available in the Mac edition.
-
iPhone 4s support requires a custom-flashed Raspberry Pi Pico board.
